CxMi 90° Elbow ISO -7 18 x 1/2″
CxMi 90° Elbow ISO -7 in the <A> Press Inox 316L range from Conex Bänninger
Product Code
PS26092G0180400
Size
18 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS26092G0180400
Size
18 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
10
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

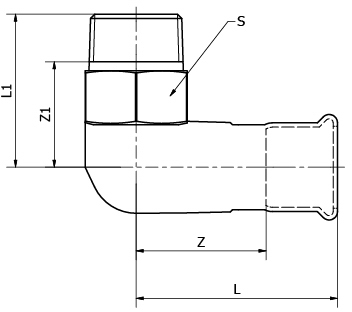

Dimensions (mm)
L
61
L1
37
Z
41
Z1
21
S
24.5
Installation
＜A＞ Press Inox Installation Sequence
