Fitting Reducer 54 x 42mm
Fitting Reducer in the <A> Press Inox 316L range from Conex Bänninger
Product Code
PS26243 0544200
Size
54 x 42mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS26243 0544200
Size
54 x 42mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

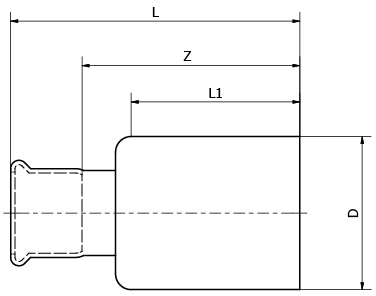

Dimensions (mm)
L
102
L1
50
Z
72
D
54
Installation
＜A＞ Press Inox Installation Sequence
