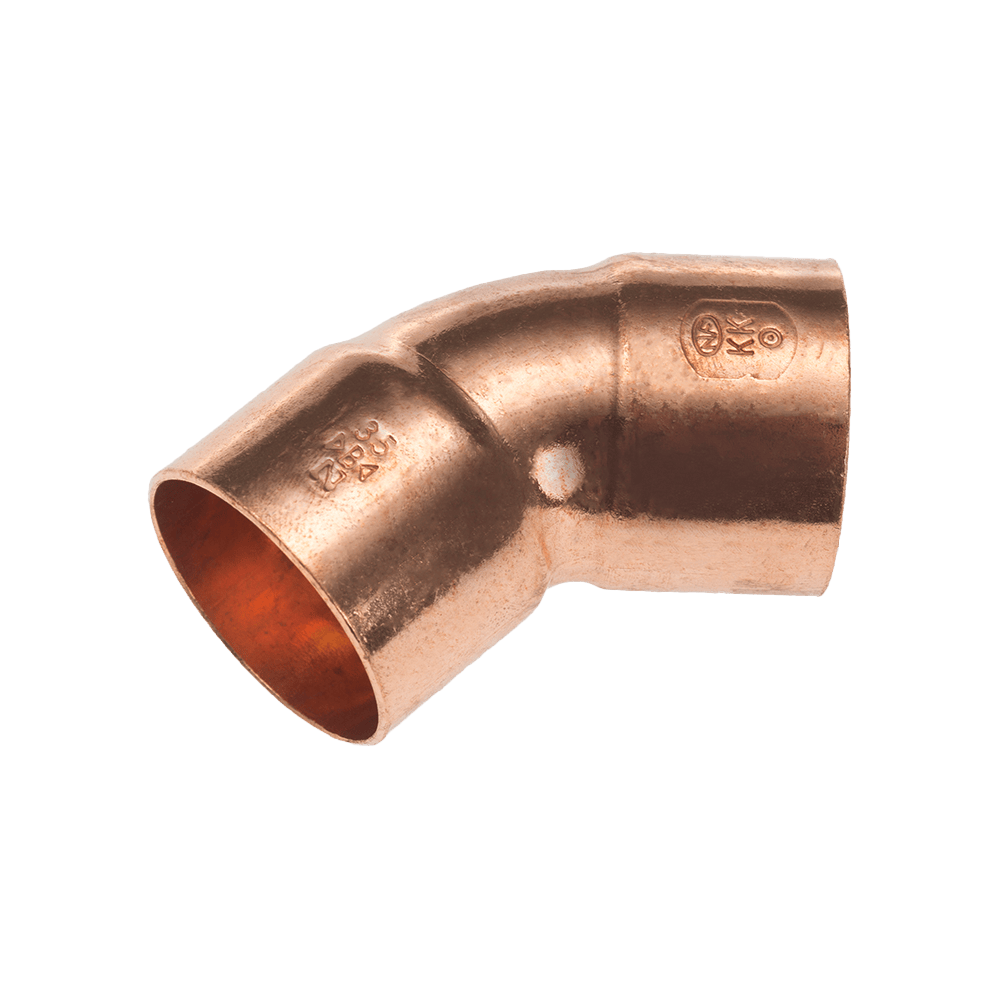

45° Elbow 10mm

45° Elbow in the Medical Gas range from Conex Bänninger

Product Code

MG5041 0100000

Size

10mm

Application

Medical

Installation Type

Brazing

Enquire Find a stockist
Specification Downloads

Specification

Discover Features
Overview

Product Code

MG5041 0100000

Size

10mm

Application

Medical

Bag Quantity

1

Operating Temperature Range

-20°C to 200°C

Maximum Operating Pressure (Bar)

79 Bar

Maximum Operating Pressure (kPa)

7900 kPa

Maximum Operating Pressure (PSI)

1145 PSI

Materials

Fitting Material

Copper

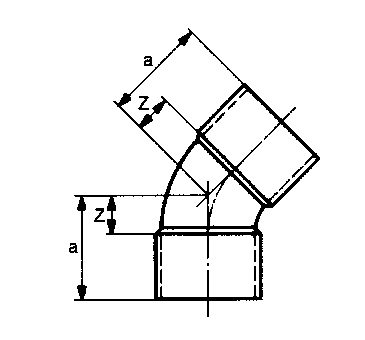

Dimensions (mm)

Z

4

a

12

Discover Features

Downloads

  • Medical Gas Sales Flyer
    (
    pdf
    1.62 MB
    )
  • Medical Gas Installation Instructions
    (
    pdf
    0.963 MB
    )

    • Related products

    View full range
    Medical Gas

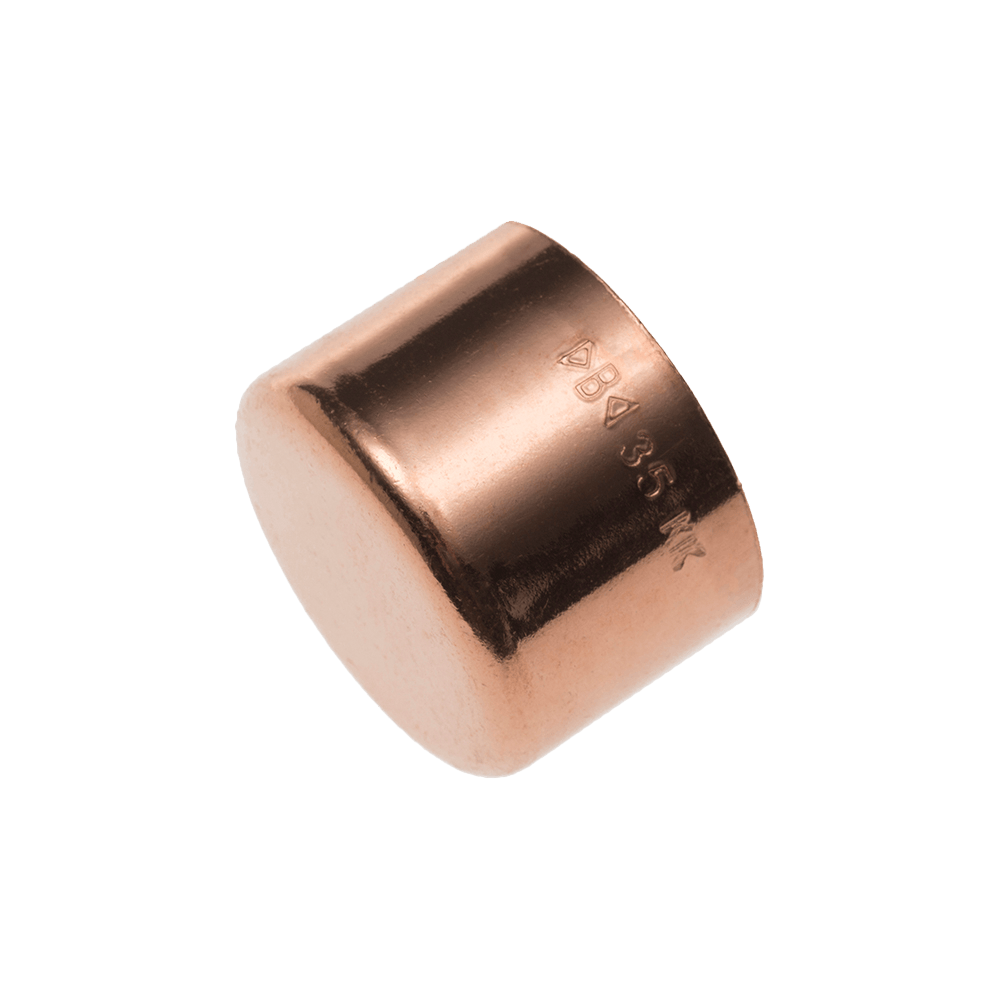

    Stop End 10mm
    Medical Gas
    90° Elbow 15mm
    Medical Gas

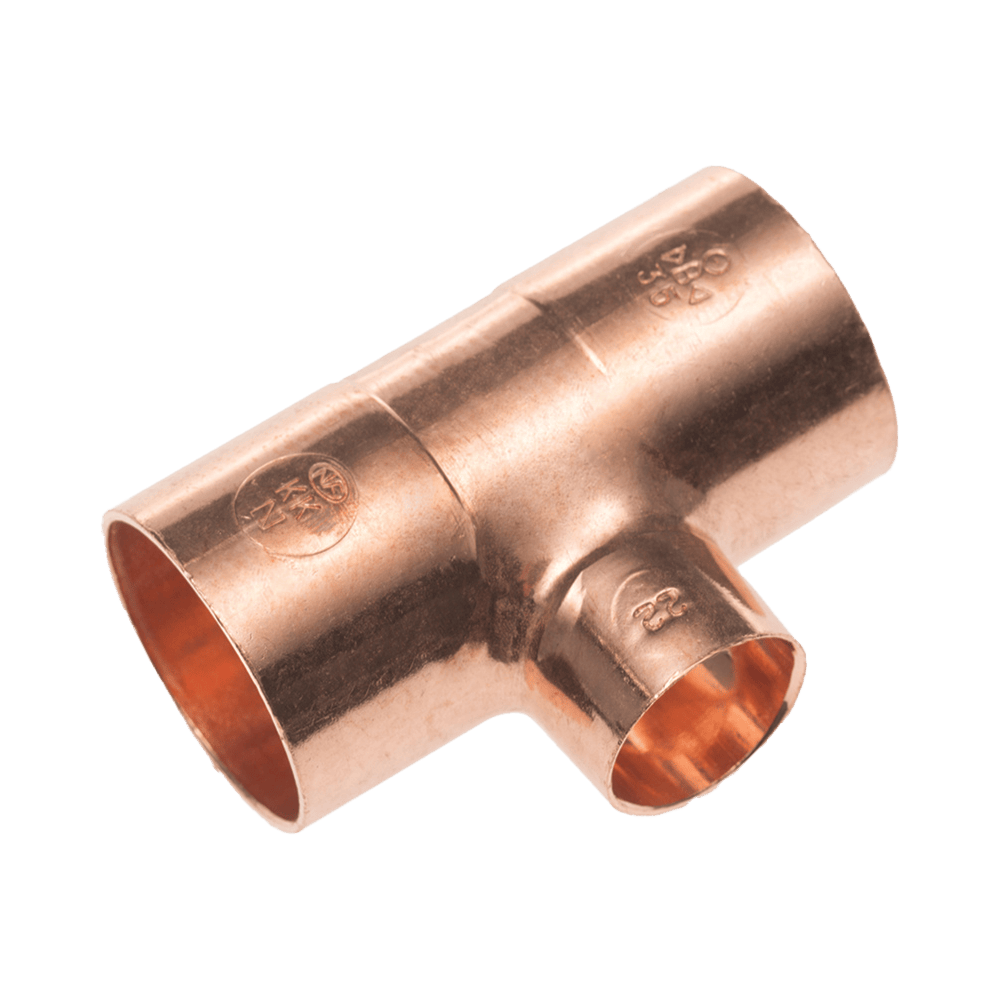

    Tee Reduced Branch 76 x 76 x 42mm
    Medical Gas

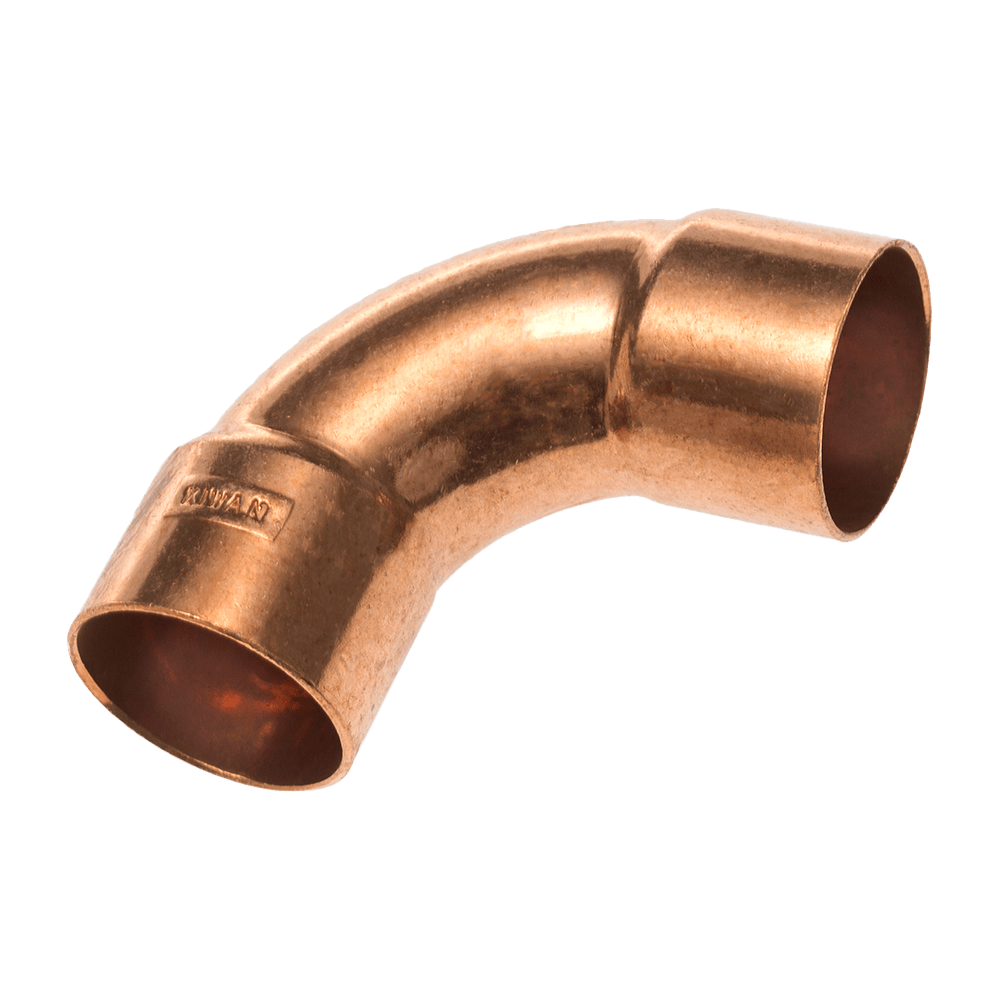

    90° Bend 28mm
