Press

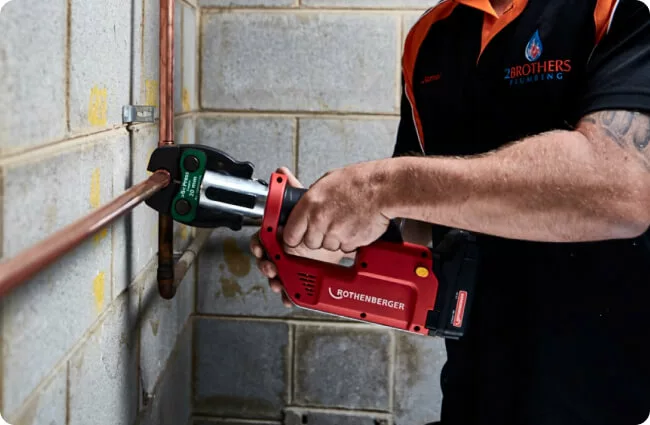

<А> Press fittings are quick and easy to install and are available in copper for drinking water applications. This flame-free range is designed with a 2-point press system featuring an unpressed joint indicator.
View Range
Applications
Why choose us
Features
Downloads

Applications

Heating Systems
Hot And Cold Water
Solar And Renewables
Suitable for:
  • Hot water heaters
  • Vacuum piping
Suitable for:
  • Drinking water
  • Chilled and cooling water
  • Local and district heating
  • Industrial and processing water
  • Shipbuilding, PH 6.5 < 9.5
Suitable for:
  • Rainwater

Why choose us

Flame-free connection, no hot works permit required

Unpressed joint indicator

M Profile Fitting

Reduced installation time and cost

Wras and DVGW approved

25 Year product guarantee

Component materials

Copper (EN 12165 CW024A)
Black EPDM O-ring

Operating parameters

Operating pressure of 16 bar at temperatures of up to 110°C
Please refer to the <A> Press Technical Brochure for installation parameters

Standards

BS 8537
DVGW G5614
prEN1254-7

Approvals and certifications

WRAS UK
DVGW Germany

Sizes

From 12 to 54 mm

Guarantee

When professionally installed, used and maintained in accordance with <A> Press installation instructions, Conex Universal Ltd. guarantees that >B< Press fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for twenty-five (25) years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Downloads

  • ‹A› Press Technical Brochure
    (
    pdf
    11.738 MB
    )
  • ‹A› Press Promotional Flyer
    (
    pdf
    3.01 MB
    )
  • ‹A› Press Installation Instructions
    (
    pdf
    0.256 MB
    )
  • ‹A› Press Tool and Tube Compatibility
    (
    pdf
    0.146 MB
    )
  • ‹A› Press Product Warranty Statement
    (
    pdf
    0.14 MB
    )
