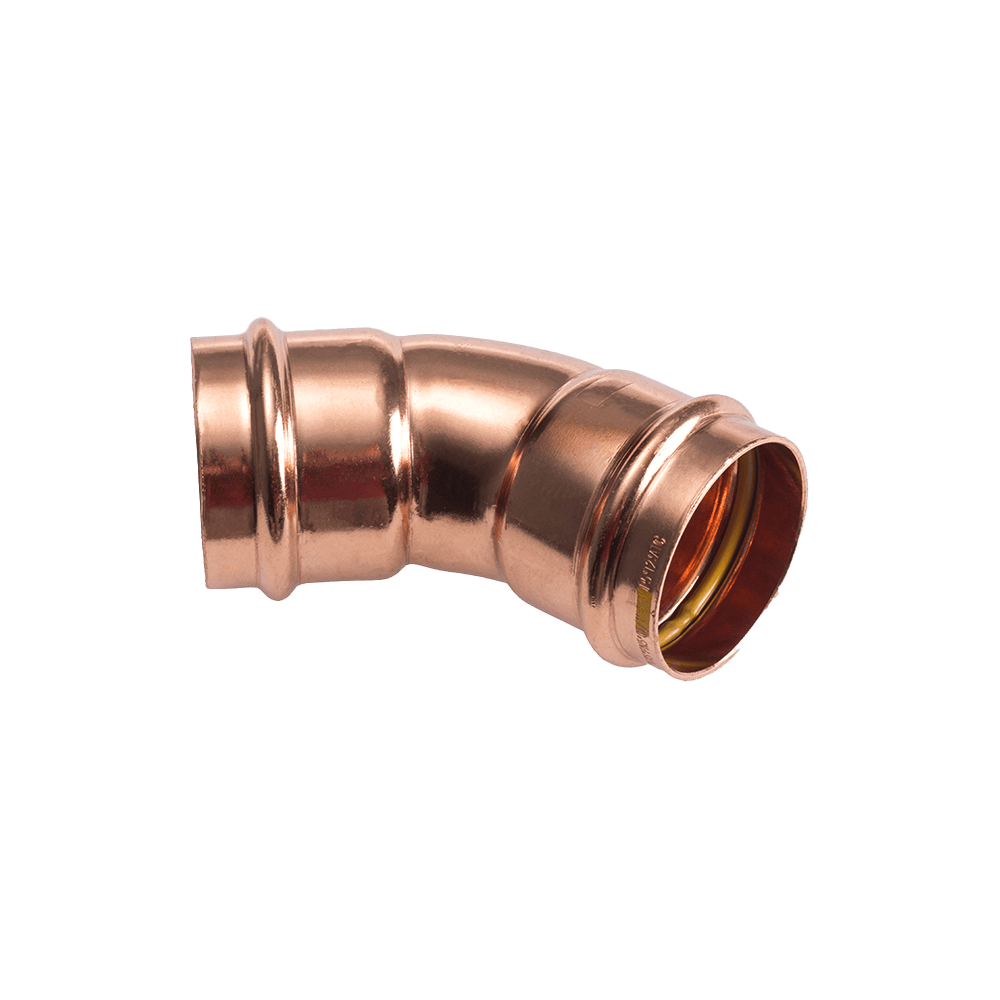

45° Obtuse Elbow 22mm
45° Obtuse Elbow in the >B< Press Gas range from Conex Bänninger
Product Code
PG5041 0220000
Size
22mm
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG5041 0220000
Size
22mm
Application
Gas, Heating Systems
Bag Quantity
10
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
HNBR
Dimensions (mm)
L
34
Z
11
Installation
＞B＜ Press Gas: Installation Sequence
