45° Street Elbow 3/4″
45° Elbow in the K65 range from Conex Bänninger
Product Code
K5040006000000
Size
3/4"
Application
ACR, Cooling Systems
Installation Type
Brazing
Specification
Overview
Product Code
K5040006000000
Size
3/4"
Application
ACR, Cooling Systems
Bag Quantity
5
Operating Temperature Range
-196°C to 150°C
Maximum Operating Pressure (Bar)
130 Bar
Maximum Operating Pressure (kPa)
13000 kPa
Maximum Operating Pressure (PSI)
1885 PSI
Materials
Fitting Material
Copper Iron

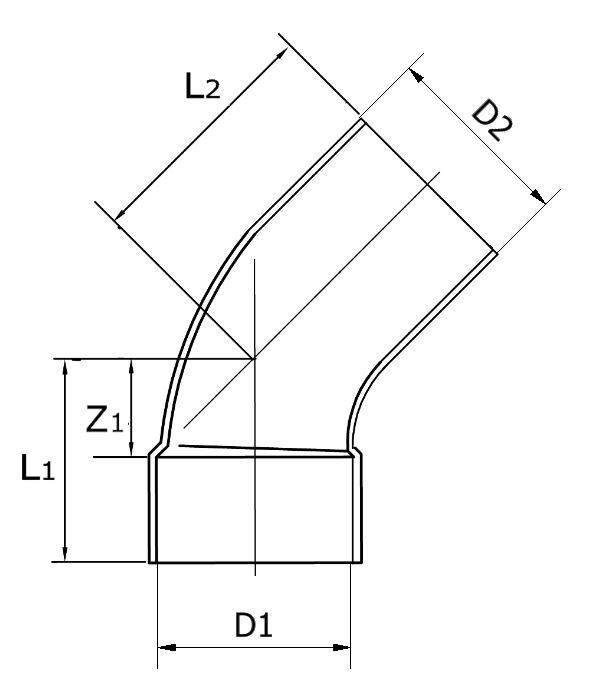

Dimensions (mm)
L1
21.5
L2
27.5
Z
9
