90° Bend with Male Thread 35 x 1 1/4″
90° Bend with Male Thread in the >B< Press Gas range from Conex Bänninger
Product Code
PG4001G0351000
Size
35 x 1 1/4"
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG4001G0351000
Size
35 x 1 1/4"
Application
Gas, Heating Systems
Bag Quantity
1
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Copper x Red Brass
O-Ring/Seal Material
HNBR

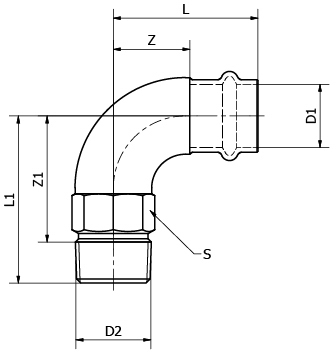

Dimensions (mm)
L
73
L1
89
Z
47
Z1
70
S
44
Installation
＞B＜ Press Gas: Installation Sequence
