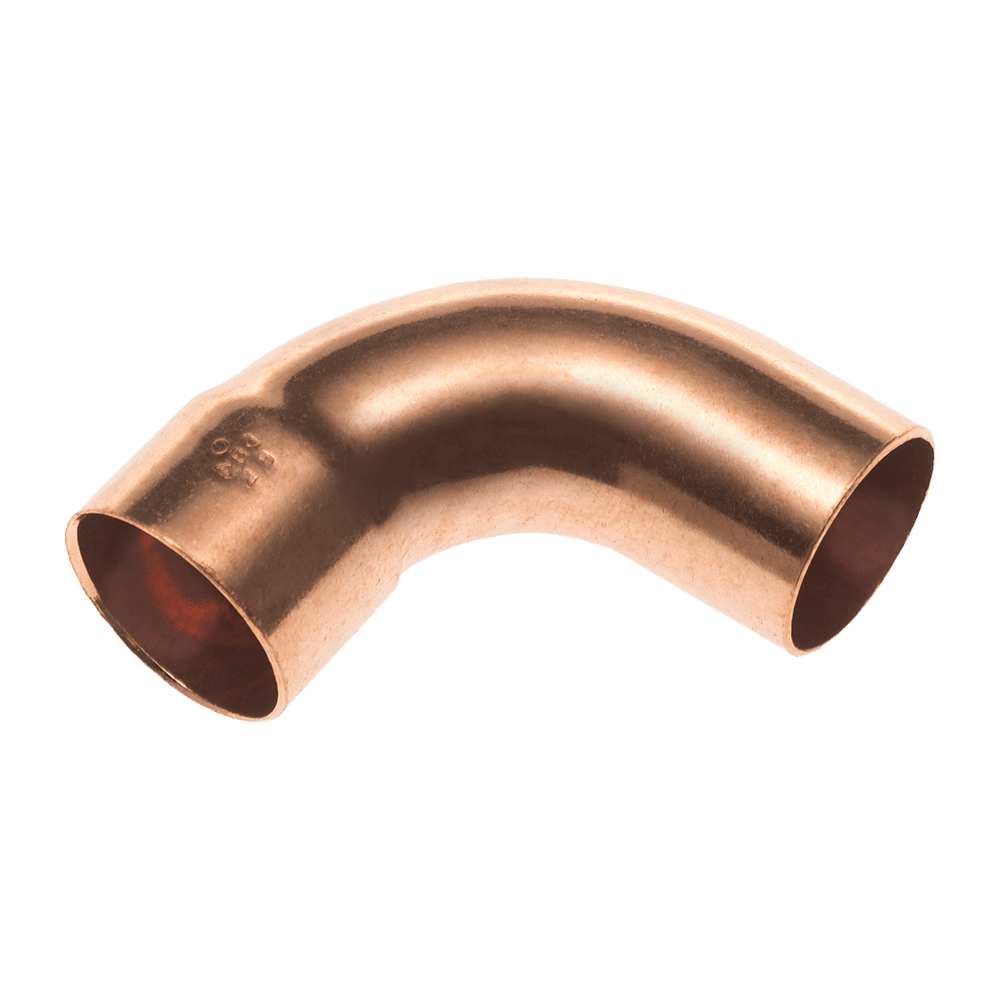

90° Street Bend 15mm
90° Street Bend in the Medical Gas range from Conex Bänninger
Product Code
MG5001A0150000
Size
15mm
Application
Medical
Installation Type
Brazing
Specification
Overview
Product Code
MG5001A0150000
Size
15mm
Application
Medical
Bag Quantity
1
Operating Temperature Range
-20°C to 200°C
Maximum Operating Pressure (Bar)
79 Bar
Maximum Operating Pressure (kPa)
7900 kPa
Maximum Operating Pressure (PSI)
1145 PSI
Materials
Fitting Material
Copper

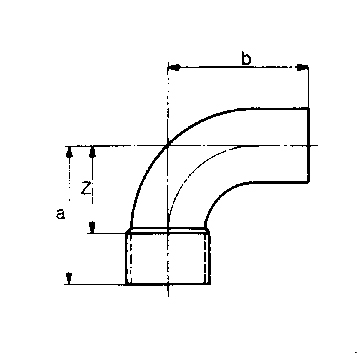

Dimensions (mm)
Z
17
a
28
b
28
Find the right system for the job
Need help finding the right system for the job?
Enquire
Medical Gas
90° Street Bend 15mm
