90° Street Bend 18mm
90° Street Bend in the >B< Press Solar range from Conex Bänninger
Product Code
PH5001 0180000
Size
18mm
Application
Heating Systems, Solar And Renewables
Installation Type
Press
Specification
Overview
Product Code
PH5001 0180000
Size
18mm
Application
Heating Systems, Solar And Renewables
Bag Quantity
2
Operating Temperature Range
-20°C to 230°C
Maximum Operating Pressure (Bar)
10 Bar
Maximum Operating Pressure (kPa)
1000 kPa
Maximum Operating Pressure (PSI)
145 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
FKM

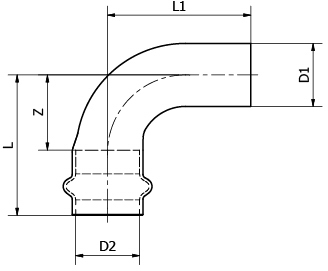

Dimensions (mm)
L
40
L1
46
Z
18
