Bent Tap Connector 15 x 1/2″
Bent Tap Connector in the >B< Sonic range from Conex Bänninger
Product Code
S002G01504000
Size
15 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S002G01504000
Size
15 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

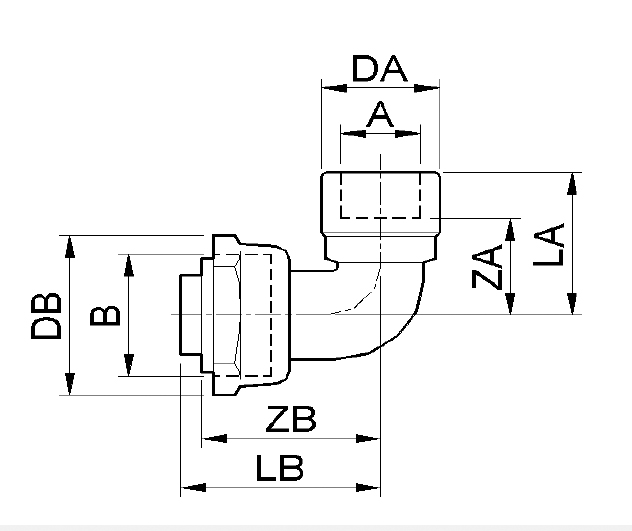

Dimensions (mm)
A
15
B
1/2"
DA
21
DB
24
LA
27
LB
29
ZA
10
ZB
24
Installation
＞B＜ Sonic: Installation Sequence
