C x C x Fi Branch Tee ISO – 7 22 x 1/2 x 22
C x C x Fi Branch Tee ISO - 7 in the <A> Press Inox 316L range from Conex Bänninger
Product Code
PS26130G0220422
Size
22 x 1/2 x 22
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS26130G0220422
Size
22 x 1/2 x 22
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

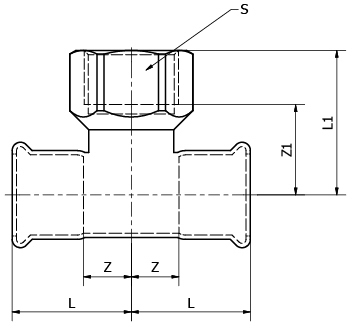

Dimensions (mm)
L
37
L1
43
Z
16
S
26
Installation
＜A＞ Press Inox Installation Sequence
