Cross Over 15mm
Cross Over in the Delcop End Feed range from Conex Bänninger
Product Code
4180 015000000
Size
15mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Brazing
Specification
Overview
Product Code
4180 015000000
Size
15mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
10
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
79 Bar
Maximum Operating Pressure (kPa)
7900 kPa
Maximum Operating Pressure (PSI)
1145 PSI
Materials
Fitting Material
Red Brass

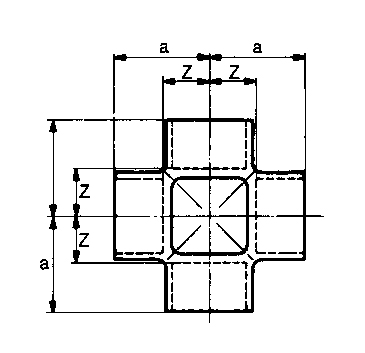

Dimensions (mm)
Z
10
a
21
