CxMi 90° Elbow ISO -7 35 x 1 1/4″
CxMi 90° Elbow ISO -7 in the <A> Press Inox 316L range from Conex Bänninger
Product Code
PS26092G0351000
Size
35 x 1 1/4"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS26092G0351000
Size
35 x 1 1/4"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

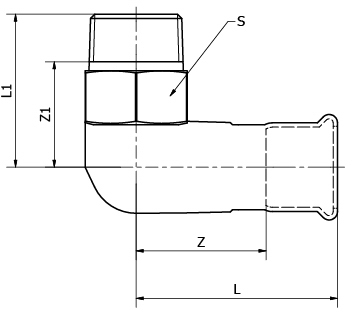

Dimensions (mm)
L
78
L1
55
Z
52
Z1
33
S
44
Installation
＜A＞ Press Inox Installation Sequence
