Equal Tee 10 x 10 x 10 mm
Equal Tee in the >B< Sonic range from Conex Bänninger
Product Code
S130 010010010
Size
10 x 10 x 10 mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S130 010010010
Size
10 x 10 x 10 mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

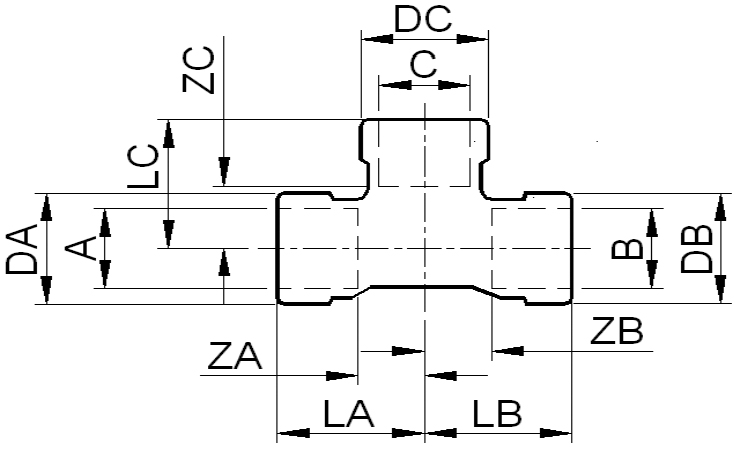

Dimensions (mm)
A
10
B
10
C
10
DA
17
DB
17
DC
17
LA
25
LB
25
LC
25
ZA
10
ZB
10
ZC
10
Installation
＞B＜ Sonic: Installation Sequence
