Equal Tee 89 x 89 x 89mm
Equal Tee in the >B< Press Inox XL range from Conex Bänninger
Product Code
PS5130 0898989
Size
89 x 89 x 89mm
Application
Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS5130 0898989
Size
89 x 89 x 89mm
Application
Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

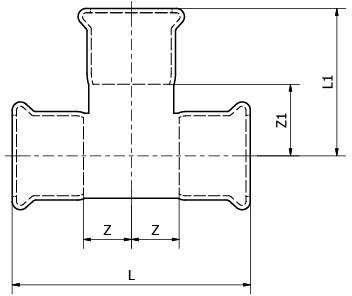

Dimensions (mm)
L
256
L1
72
Z
128
Z1
69
