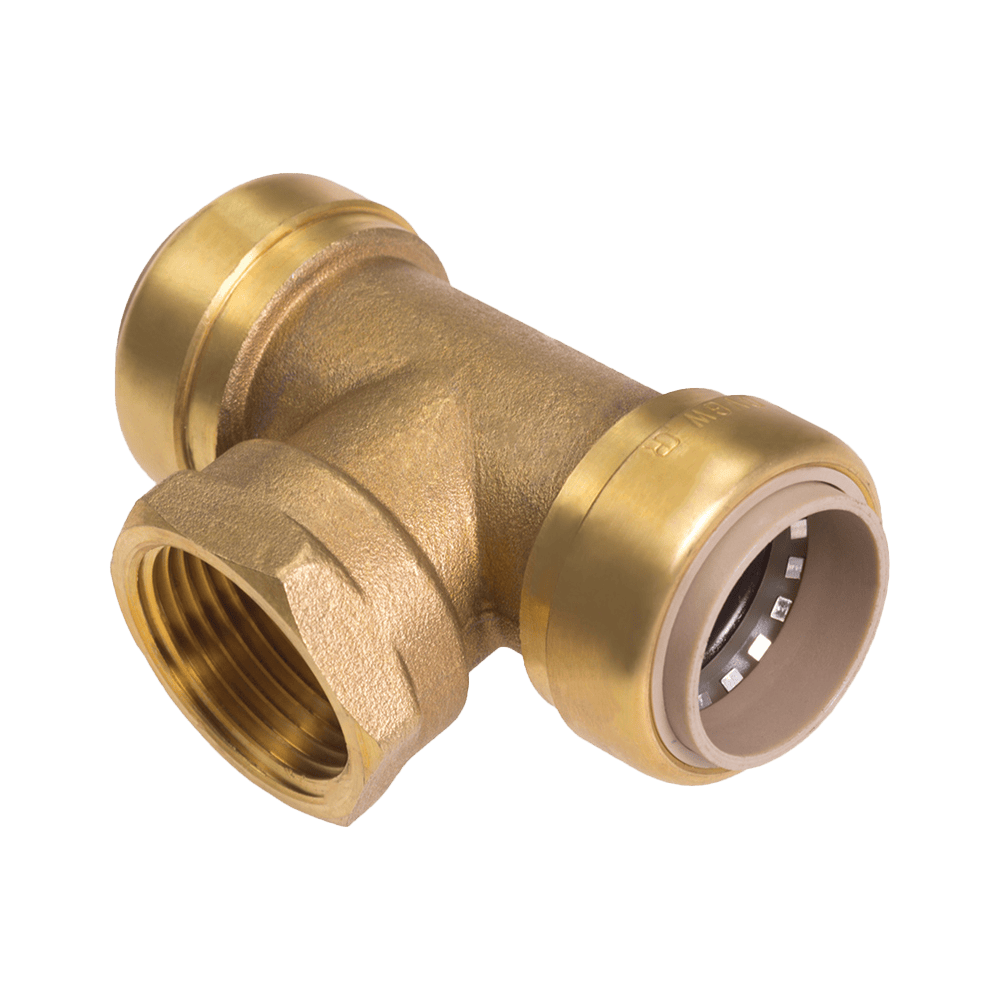

Female Branch Tee 28 x 1 x 28
Female Branch Tee in the >B< Push range from Conex Bänninger
Product Code
BM8130G0280828
Size
28 x 1 x 28
Application
Cooling Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
BM8130G0280828
Size
28 x 1 x 28
Application
Cooling Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Brass
O-Ring/Seal Material
EPDM
Dimensions (mm)
A
28
B
28
C
1"
DA
41
DB
41
DC
38
LA
45
LB
45
LC
39
ZA
15
ZB
15
Installation
＞B＜ Push Installation Sequence
