Fitting Reducer 1 3/8 x 35mm
Fitting Reducer in the K65 range from Conex Bänninger
Product Code
K5243011035000
Size
1 3/8 x 35mm
Application
ACR, Cooling Systems
Installation Type
Brazing
Specification
Overview
Product Code
K5243011035000
Size
1 3/8 x 35mm
Application
ACR, Cooling Systems
Bag Quantity
1
Operating Temperature Range
-196°C to 150°C
Maximum Operating Pressure (Bar)
130 Bar
Maximum Operating Pressure (kPa)
13000 kPa
Maximum Operating Pressure (PSI)
1885 PSI
Materials
Fitting Material
Copper Iron

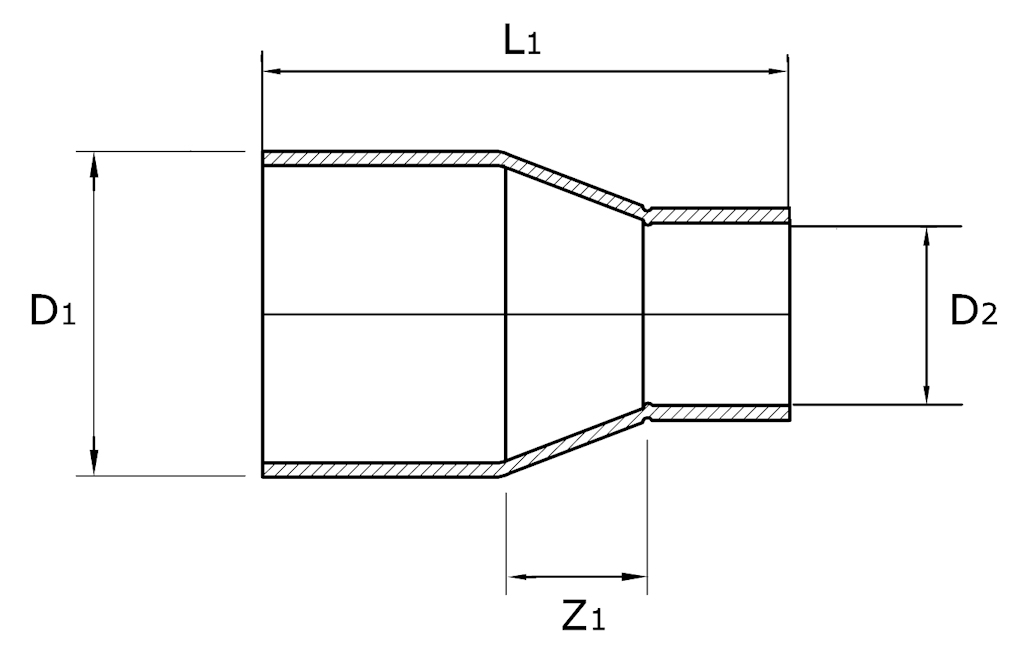

Dimensions (mm)
L1
54
L2
11
D1
1 3/8"
D2
35
