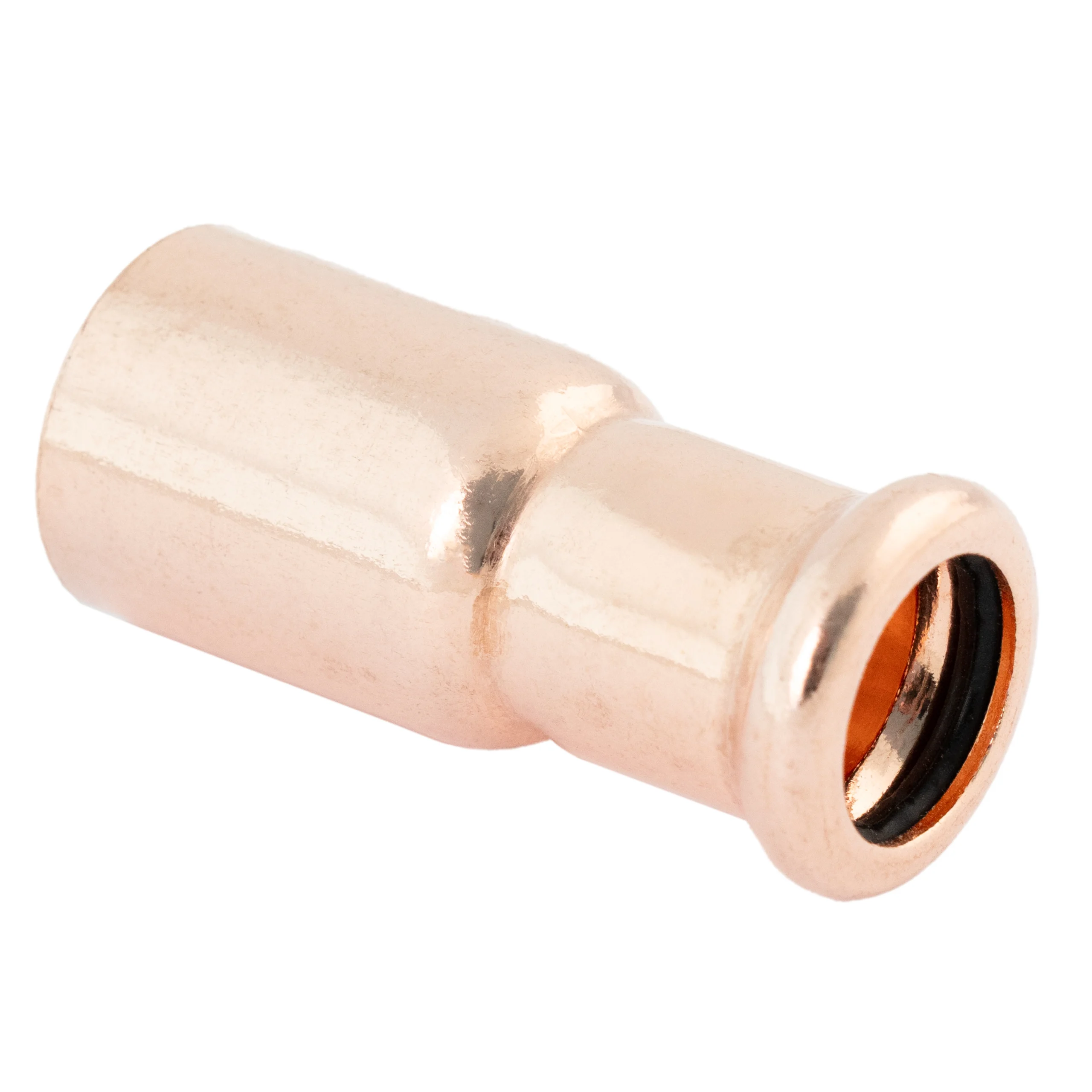

Fitting Reducer 22 x 15mm
Fitting Reducer in the ‹A› Press Copper range from Conex Bänninger
Product Code
APW5243 0221500
Size
22 x 15mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
APW5243 0221500
Size
22 x 15mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM
Dimensions (mm)
L
50.6
L1
25
Z
30.6
D
22
