Male Straight Connector Turned 22 x 3/4″
Male Straight Connector Turned in the Delcop End Feed range from Conex Bänninger
Product Code
4280G022006000
Size
22 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Brazing
Specification
Overview
Product Code
4280G022006000
Size
22 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
10
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
79 Bar
Maximum Operating Pressure (kPa)
7900 kPa
Maximum Operating Pressure (PSI)
1145 PSI
Materials
Fitting Material
Red Brass

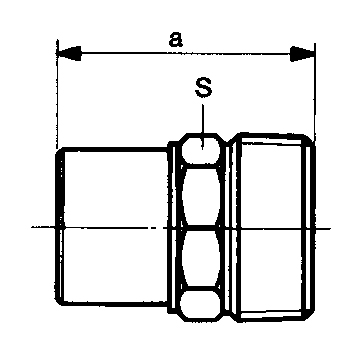

Dimensions (mm)
S
24
a
44
