Male x Female Straight Union Connector (Flat Joint) 3/4 x 1 1/4″
Male x Female Straight Union Connector (Flat Joint) in the Series 3000 range from Conex Bänninger
Product Code
3370 006010000
Size
3/4 x 1 1/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Threaded
Specification
Overview
Product Code
3370 006010000
Size
3/4 x 1 1/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
1
Operating Temperature Range
-20°C to 120°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Red Brass

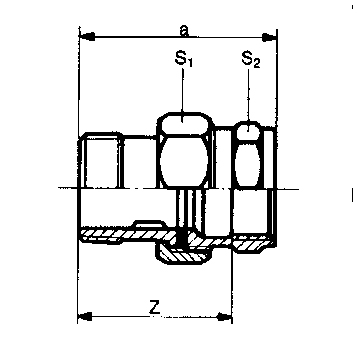

Dimensions (mm)
a
26
