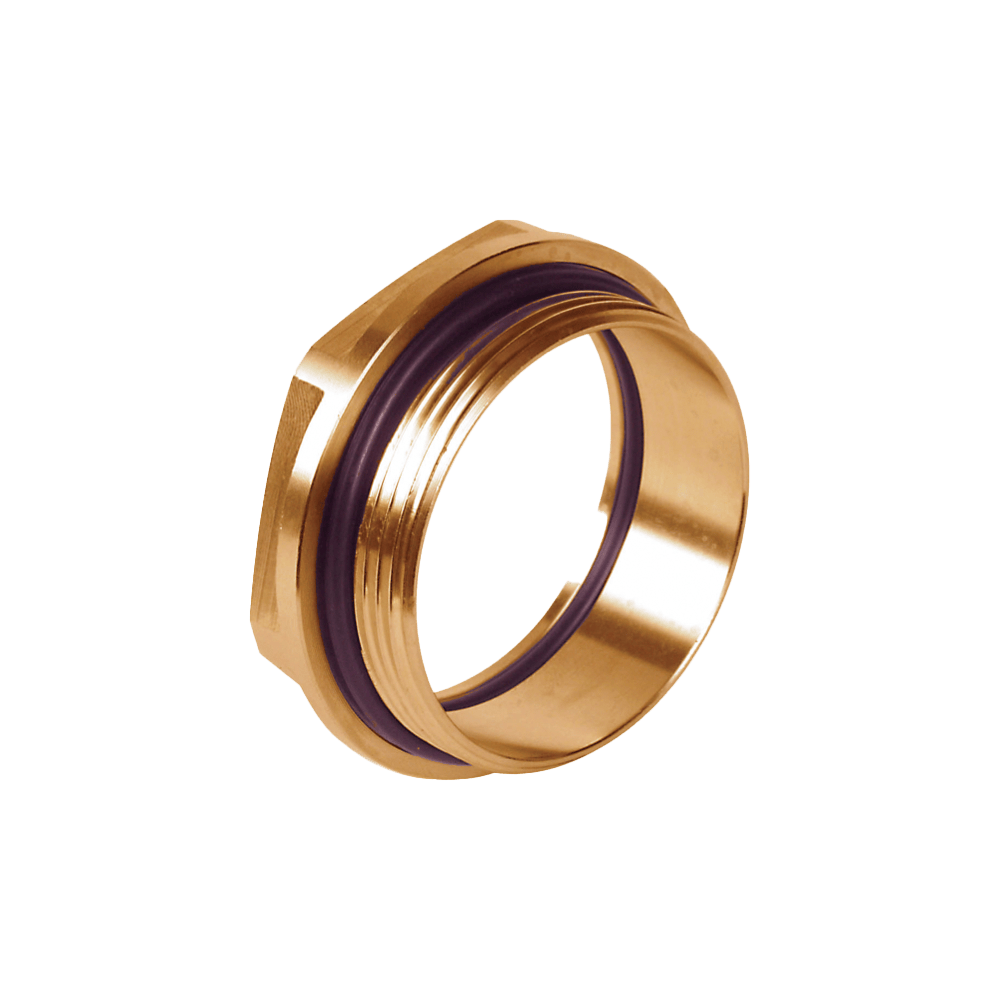

Oyster Converter – Red Brass 28 x 1″
Oyster Converter - Red Brass in the >B< Oyster range from Conex Bänninger
Product Code
Y4243G02808000
Size
28 x 1"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Threaded
Specification
Overview
Product Code
Y4243G02808000
Size
28 x 1"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
O°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
EPDM
Dimensions (mm)
A
28
B
1"
DA
36.9
DB
39.8
LA
19.5
LB
9.5
LC A/F hex
36
Installation
＞B＜ Oyster Installation Video
