Pitcher Tee 18mm

Pitcher Tee in the Delcop End Feed range from Conex Bänninger

Product Code

4131 018018018

Size

18mm

Application

Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables

Installation Type

Brazing

Enquire Find a stockist

Specification Downloads

Specification

Discover Features

Overview

Product Code

4131 018018018

Size

18mm

Application

Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables

Bag Quantity

10

Operating Temperature Range

-20°C to 110°C

Maximum Operating Pressure (Bar)

79 Bar

Maximum Operating Pressure (kPa)

7900 kPa

Maximum Operating Pressure (PSI)

1145 PSI

Materials

Fitting Material

Red Brass

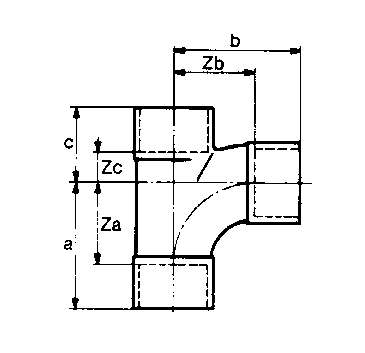

Dimensions (mm)

ZA

25

ZB

25

ZC

11

a

38

b

38

c

24

Discover Features

Downloads

Delcop Installation Instructions

(

pdf

1.425 MB

)

Delcop End Feed Sales Flyer

(

pdf

0.939 MB

)
