Reduced Branch Tee 35 x 15 x 35mm
Reduced Branch Tee in the <A> Press Inox 316L range from Conex Bänninger
Product Code
PS26130 0351535
Size
35 x 15 x 35mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS26130 0351535
Size
35 x 15 x 35mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

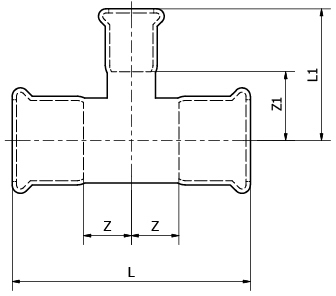

Dimensions (mm)
L
102.5
L1
49
Z
25
Z1
29
Installation
＜A＞ Press Inox Installation Sequence
