Reduced Straight Coupler 1 1/2 x 3/4″
Reduced Straight Coupler in the Series 3000 range from Conex Bänninger
Product Code
3240 012006000
Size
1 1/2 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Threaded
Specification
Overview
Product Code
3240 012006000
Size
1 1/2 x 3/4"
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
1
Operating Temperature Range
-20°C to 120°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Red Brass

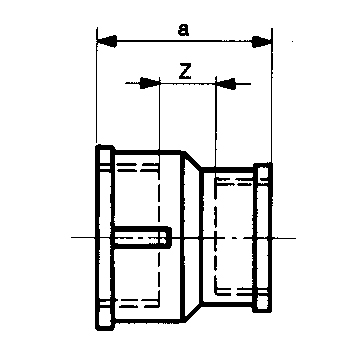

Dimensions (mm)
Z
20
a
54
