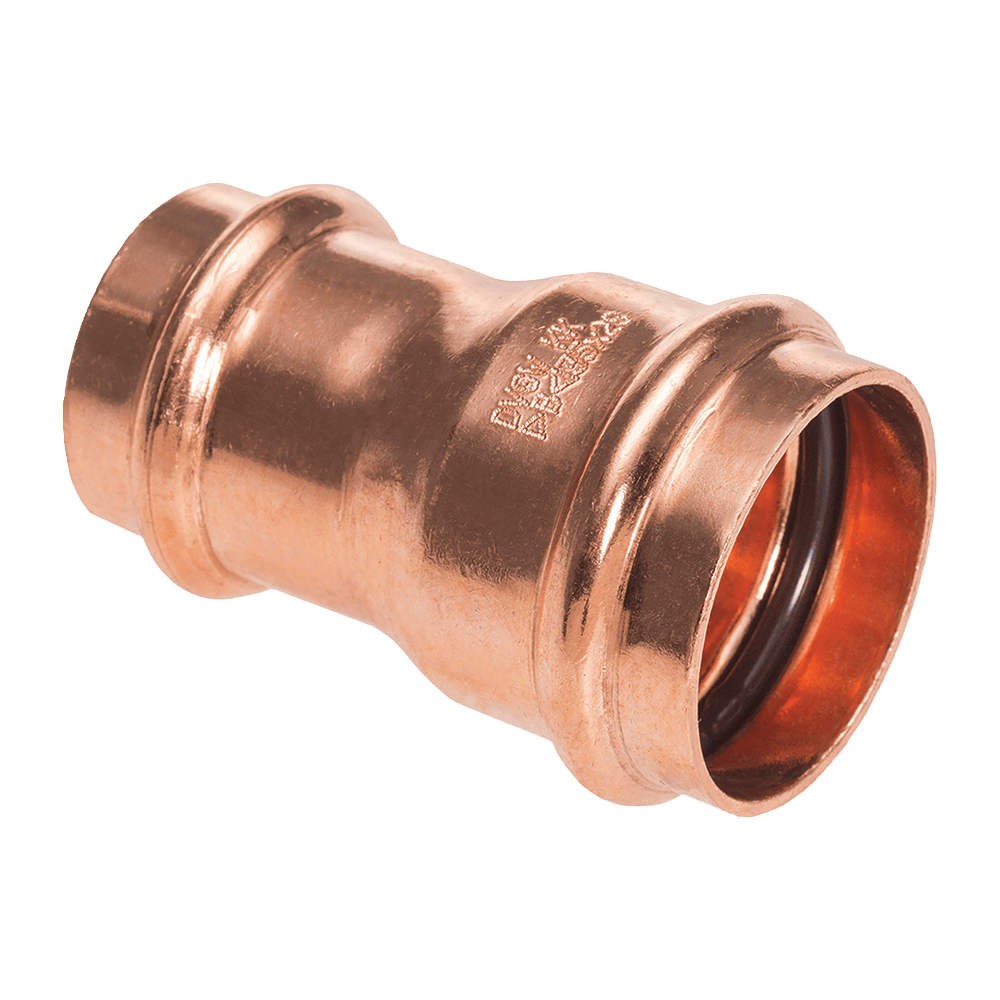

Reduced Straight Coupler 35 x 28mm

Reduced Straight Coupler in the >B< Press range from Conex Bänninger

Product Code

P5240 03528000

Size

35 x 28mm

Application

Cooling Systems, Heating Systems, Hot And Cold Water

Installation Type

Press

Enquire Find a stockist

Specification Installation Downloads

Specification

Discover Features

Overview

Product Code

P5240 03528000

Size

35 x 28mm

Application

Cooling Systems, Heating Systems, Hot And Cold Water

Bag Quantity

5

Operating Temperature Range

-35°C to 110°C

Maximum Operating Pressure (Bar)

16 Bar

Maximum Operating Pressure (kPa)

1600 kPa

Maximum Operating Pressure (PSI)

232 PSI

Materials

Fitting Material

Copper

O-Ring/Seal Material

EPDM
