Straight Female Adaptor 15 x 1/2″
Straight Female Adaptor in the Medical Gas range from Conex Bänninger
Product Code
MG4270G0150400
Size
15 x 1/2"
Application
Medical
Installation Type
Brazing
Specification
Overview
Product Code
MG4270G0150400
Size
15 x 1/2"
Application
Medical
Bag Quantity
1
Operating Temperature Range
-20°C to 200°C
Maximum Operating Pressure (Bar)
79 Bar
Maximum Operating Pressure (kPa)
7900 kPa
Maximum Operating Pressure (PSI)
1145 PSI
Materials
Fitting Material
Red Brass

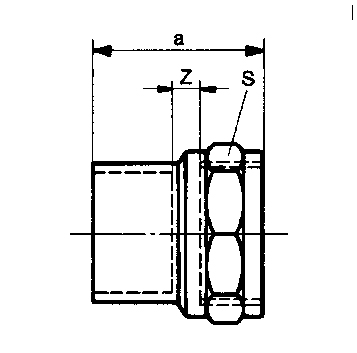

Dimensions (mm)
Z
3
a
28
