Straight Female Connector 12 x 3/8″
Female Straight Connector in the >B< Press range from Conex Bänninger
Product Code
P4270G01203000
Size
12 x 3/8"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P4270G01203000
Size
12 x 3/8"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
EPDM

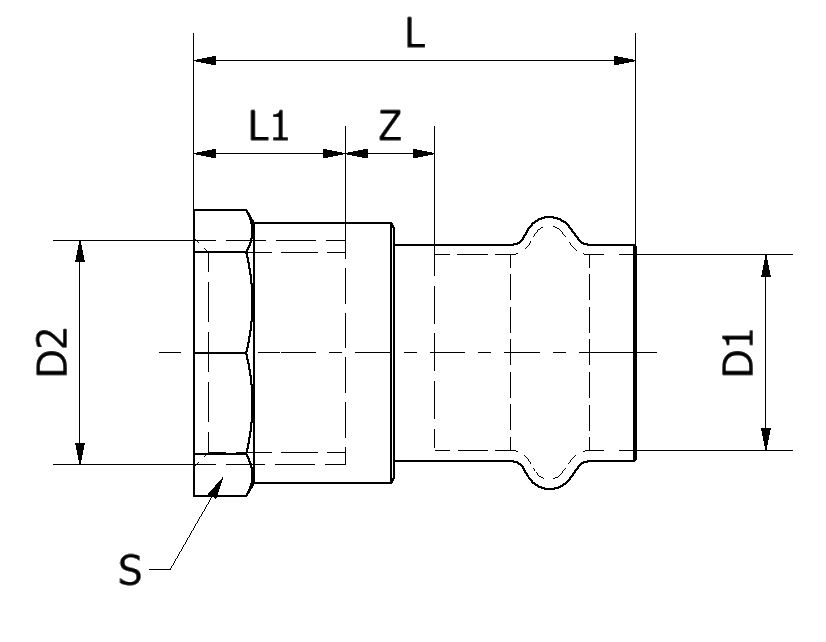

Dimensions (mm)
L
32
L1
11.4
Z
2.6
S
20.5
Installation
＞B＜ Press Training Scheme
＞B＜ Press Installation Video
