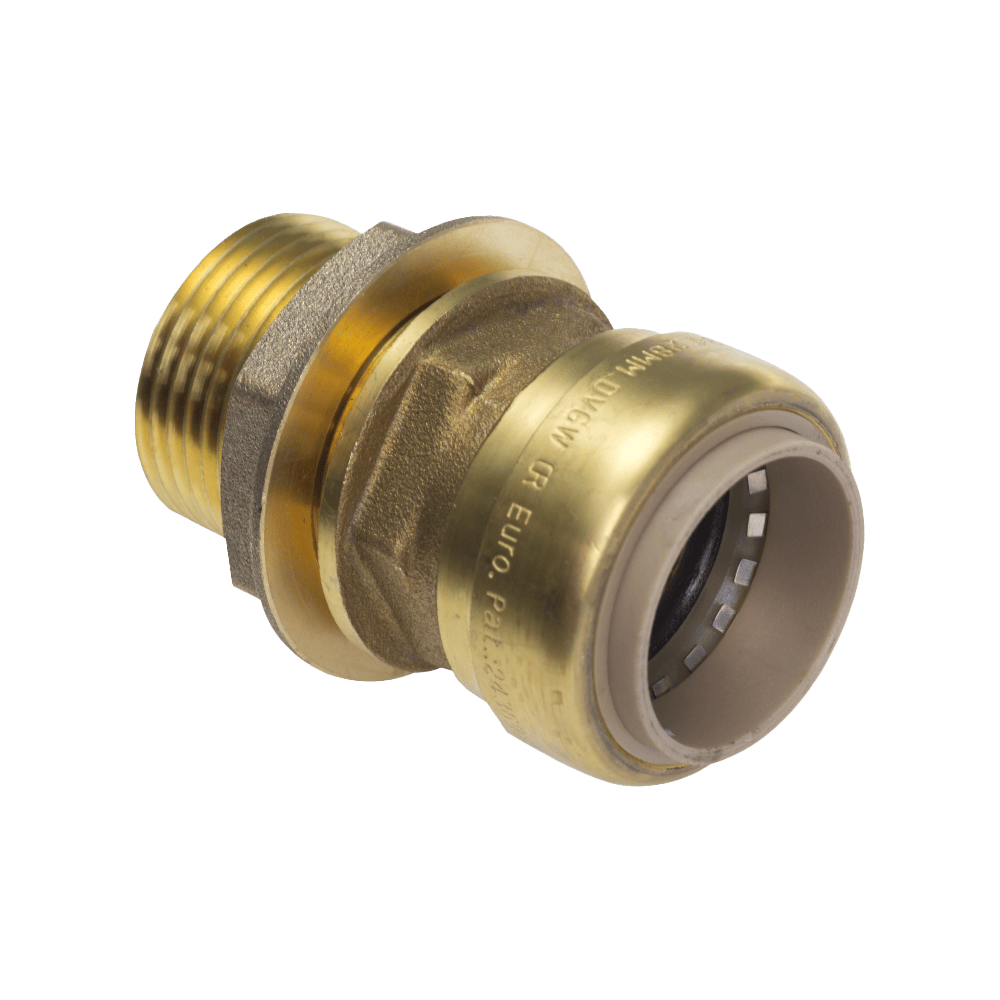

Tank Connector 22 x 1/2″
Tank Connector in the >B< Push range from Conex Bänninger
Product Code
BM8350 0220400
Size
22 x 1/2"
Application
Cooling Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
BM8350 0220400
Size
22 x 1/2"
Application
Cooling Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Brass
O-Ring/Seal Material
EPDM
Dimensions (mm)
A
22
B
1/2"
DA
33
DB
25
LA
59
Installation
＞B＜ Push Installation Sequence
