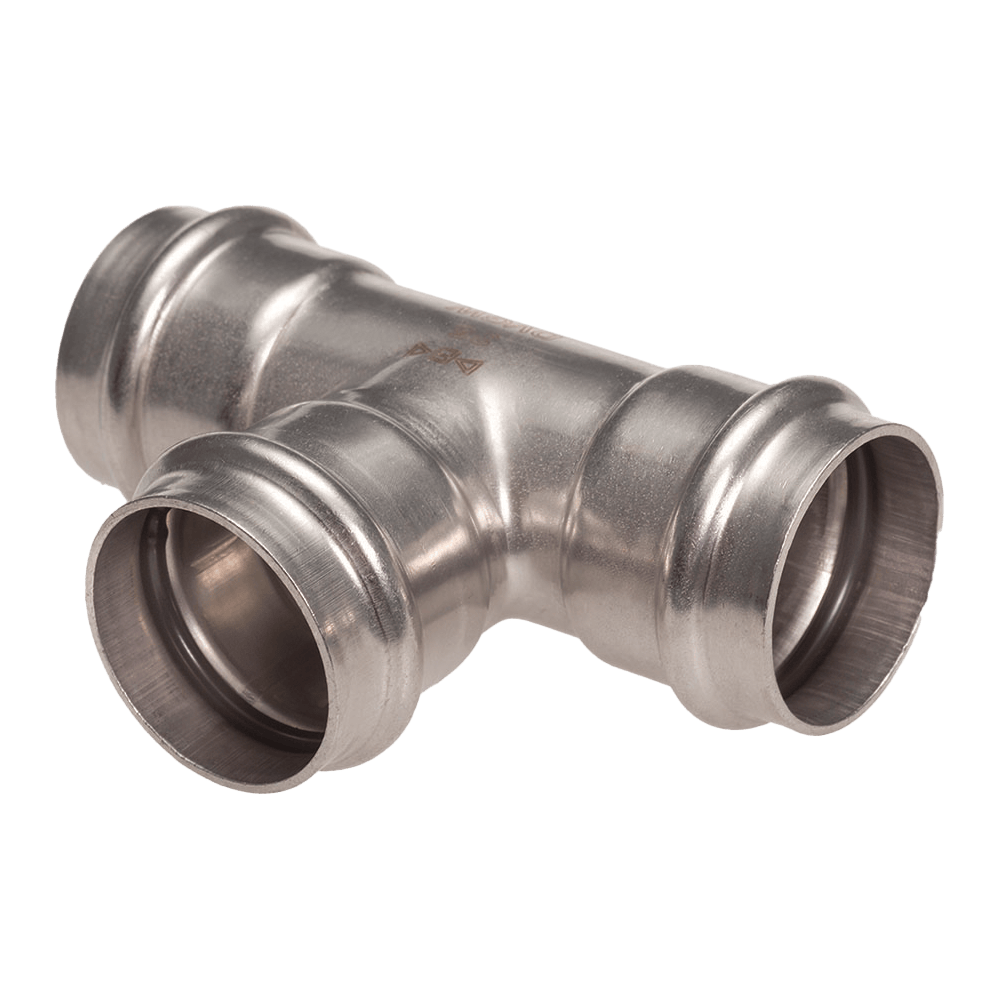

Tee – Equal 15mm
Tee - Equal in the >B< Press Inox range from Conex Bänninger
Product Code
PS5130 0151515
Size
15mm
Application
Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS5130 0151515
Size
15mm
Application
Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM
Dimensions (mm)
L
82
L1
39
Z
22
Z1
14
Installation
＞B＜ Press Inox Installation Sequence
