Tee – Reduced Branch 22 x 22 x 12mm
Tee - Reduced Branch in the >B< Press Gas range from Conex Bänninger
Product Code
PG5130 0221222
Size
22 x 22 x 12mm
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG5130 0221222
Size
22 x 22 x 12mm
Application
Gas, Heating Systems
Bag Quantity
10
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
HNBR

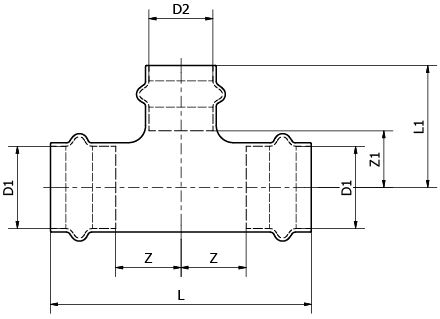

Dimensions (mm)
L
65
L1
37.5
L2
9.5
L3
13
Installation
＞B＜ Press Gas: Installation Sequence
