Tee – Reduced Branch 28 x 22 x 18mm
Tee - Reduced Branch in the >B< Press range from Conex Bänninger
Product Code
P5130 02818022
Size
28 x 22 x 18mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P5130 02818022
Size
28 x 22 x 18mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

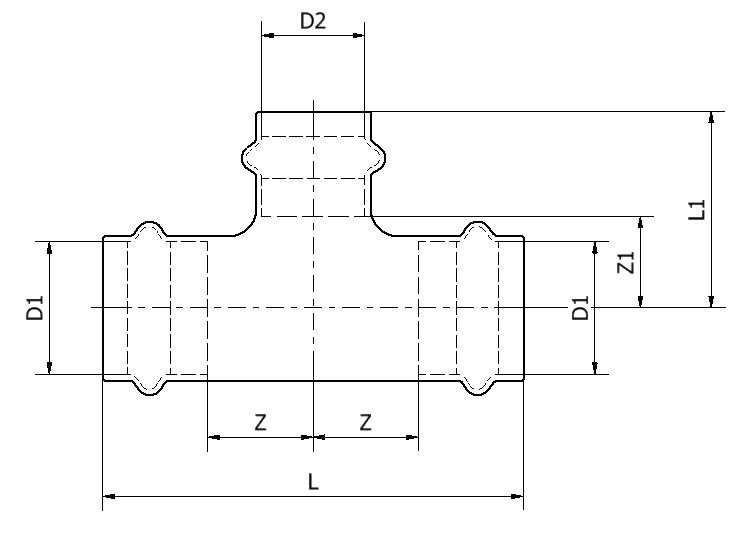

Dimensions (mm)
L
81
L1
41
Z
16.5
Z1
19
Installation
