Tee Reduced Branch 76 x 22 x 76mm
Tee Reduced Branch in the >B< Press Inox XL range from Conex Bänninger
Product Code
PS5130 0762276
Size
76 x 22 x 76mm
Application
Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS5130 0762276
Size
76 x 22 x 76mm
Application
Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

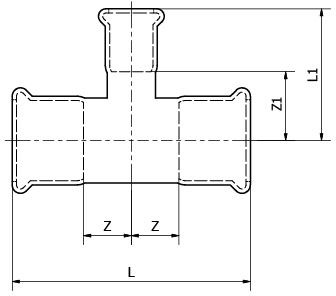

Dimensions (mm)
L
228
L1
68
Z
45
Z1
61
