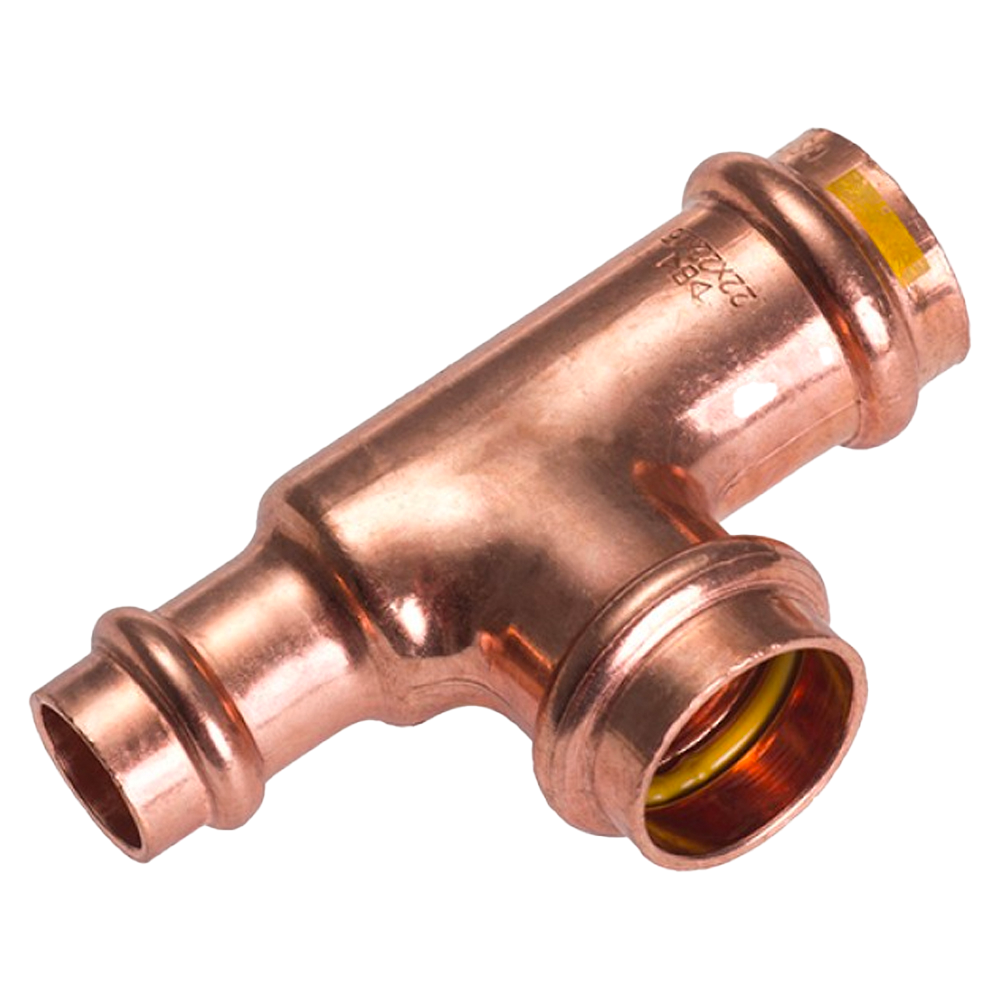

Tee – Reduced End 16 x 16 x 14mm
Tee - Reduced End in the >B< Press Gas range from Conex Bänninger
Product Code
PG5130 0161614
Size
16 x 16 x 14mm
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG5130 0161614
Size
16 x 16 x 14mm
Application
Gas, Heating Systems
Bag Quantity
5
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
HNBR

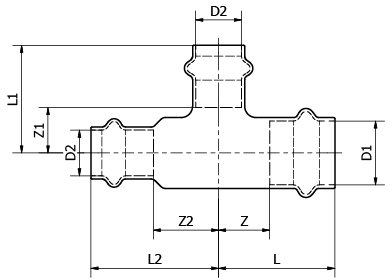

Dimensions (mm)
L
41.5
L1
33.8
L2
42.5
Z
19.5
Z1
12
Z2
20.5
Installation
＞B＜ Press Gas: Installation Sequence
