Tee – Reduced End and Branch 15 x 12 x 12mm
Tee - Reduced End and Branch in the >B< Press range from Conex Bänninger
Product Code
P5130 01512012
Size
15 x 12 x 12mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P5130 01512012
Size
15 x 12 x 12mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

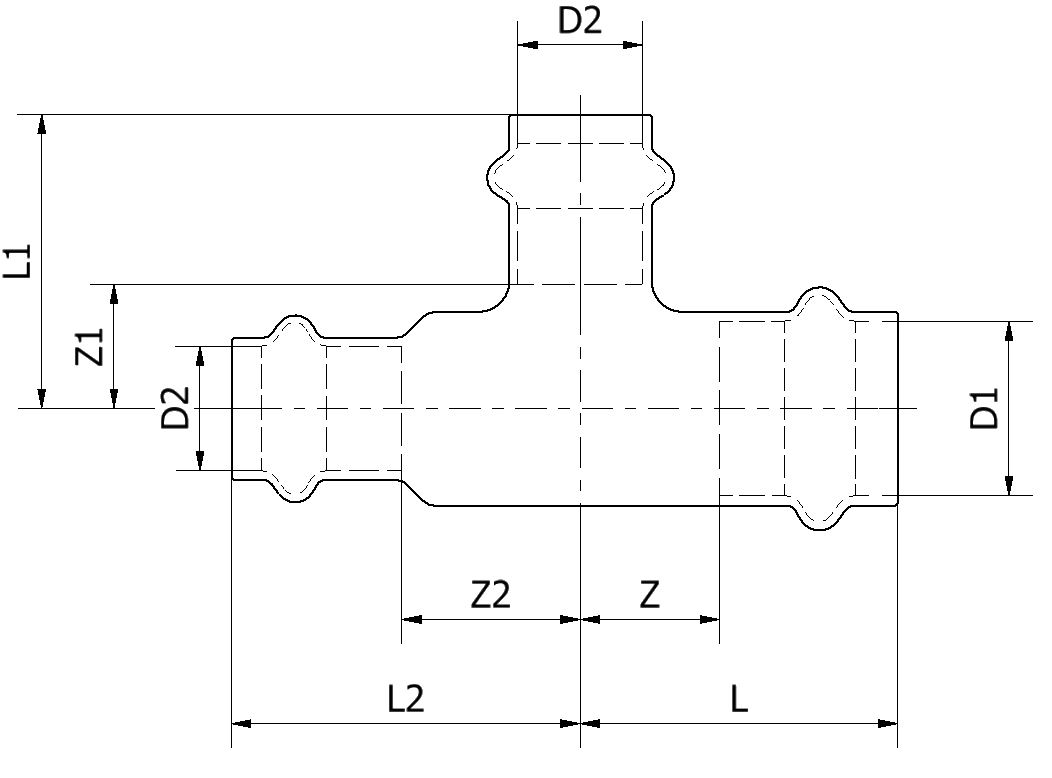

Dimensions (mm)
L
32
L1
31.5
L2
34.5
Z
10
Z1
11
Z2
16.5
Installation
＞B＜ Press Training Scheme
＞B＜ Press Installation Video
