Tee Reduced End And Branch 22 x 15 x 18mm
Tee Reduced End And Branch in the Delbraze range from Conex Bänninger
Product Code
5130 022015018
Size
22 x 15 x 18mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Brazing
Specification
Overview
Product Code
5130 022015018
Size
22 x 15 x 18mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
10
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Copper

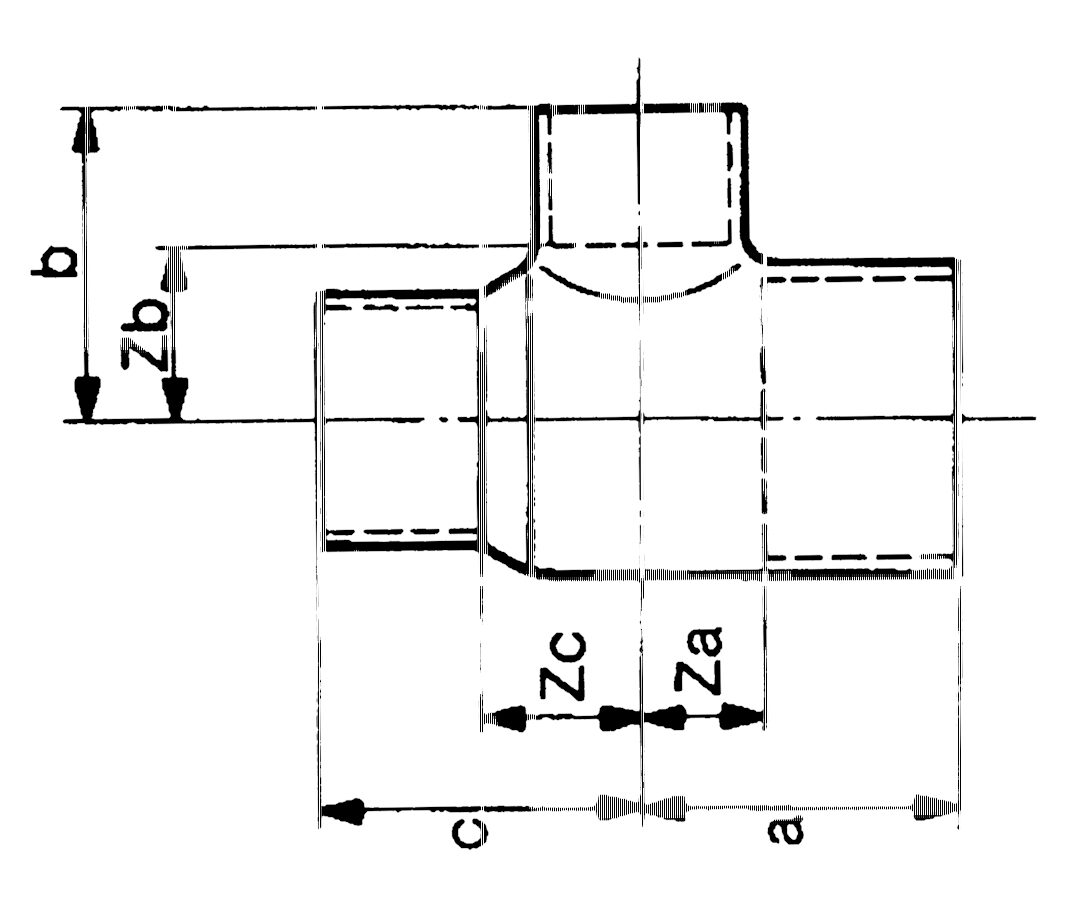

Dimensions (mm)
ZA
11
ZB
13
ZC
16
a
27
b
26
c
27
