Tee with Female Branch 76 x 3/4 x 76
Tee with Female Branch in the >B< Press Inox XL range from Conex Bänninger
Product Code
PS4130G0760676
Size
76 x 3/4 x 76
Application
Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
PS4130G0760676
Size
76 x 3/4 x 76
Application
Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

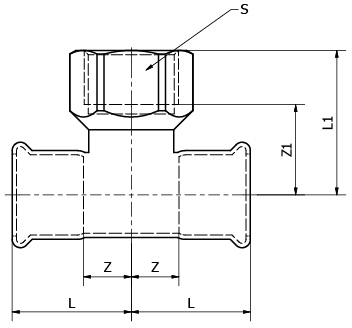

Dimensions (mm)
L
113
L1
71
Z
59
Z1
56
S
30
