Tee with Female Threaded Branch 18 x 1/2 x 18mm
Tee with Female Threaded Branch in the >B< Press Solar range from Conex Bänninger
Product Code
PH4130G0180418
Size
18 x 1/2 x 18mm
Application
Heating Systems, Solar And Renewables
Installation Type
Press
Specification
Overview
Product Code
PH4130G0180418
Size
18 x 1/2 x 18mm
Application
Heating Systems, Solar And Renewables
Bag Quantity
2
Operating Temperature Range
-20°C to 230°C
Maximum Operating Pressure (Bar)
10 Bar
Maximum Operating Pressure (kPa)
1000 kPa
Maximum Operating Pressure (PSI)
145 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
FKM

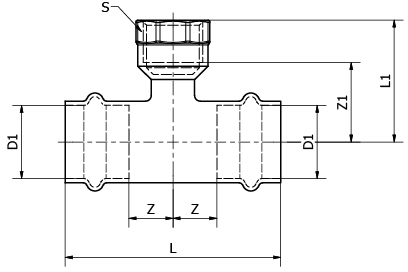

Dimensions (mm)
L
45
L1
40
Z
21
Z1
25
