Telescopic Connector Single Leg 15 x 15mm
Telescopic Connector Single Leg in the >B< Sonic range from Conex Bänninger
Product Code
S370 015000000
Size
15 x 15mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S370 015000000
Size
15 x 15mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

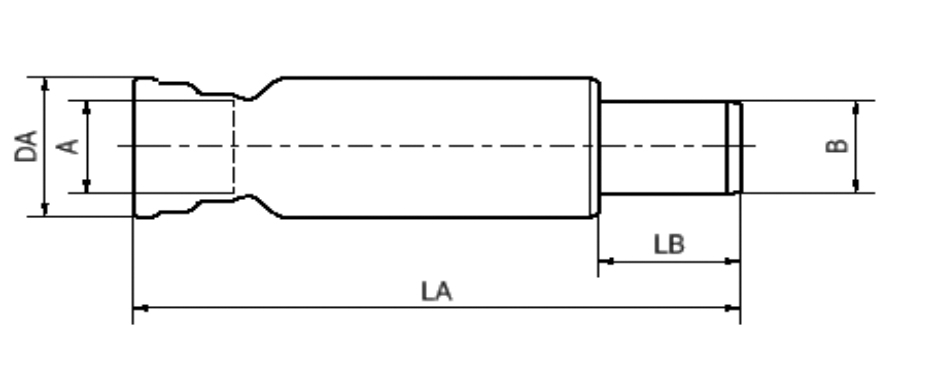

Dimensions (mm)
A
15
B
15
DA
21
LA
92.6
LB
18.5
Installation
＞B＜ Sonic: Installation Sequence
