Wall Plate Elbow 15 x 1/2″
Wall Plate Elbow in the >B< Press Gas range from Conex Bänninger
Product Code
PG4471G0150400
Size
15 x 1/2"
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG4471G0150400
Size
15 x 1/2"
Application
Gas, Heating Systems
Bag Quantity
5
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
HNBR

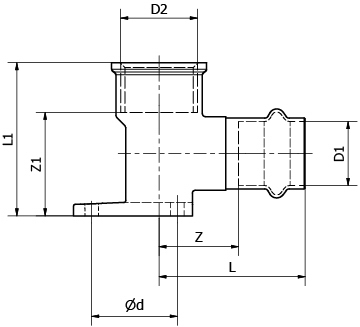

Dimensions (mm)
L
40
L1
33
Z
22
Z1
18
ød
40
Installation
＞B＜ Press Gas: Installation Sequence
