Wall Plate Elbow 18 x 1/2″
Wall Plate Elbow in the >B< Press range from Conex Bänninger
Product Code
P4471G01804000
Size
18 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P4471G01804000
Size
18 x 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
5
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Red Brass
O-Ring/Seal Material
EPDM

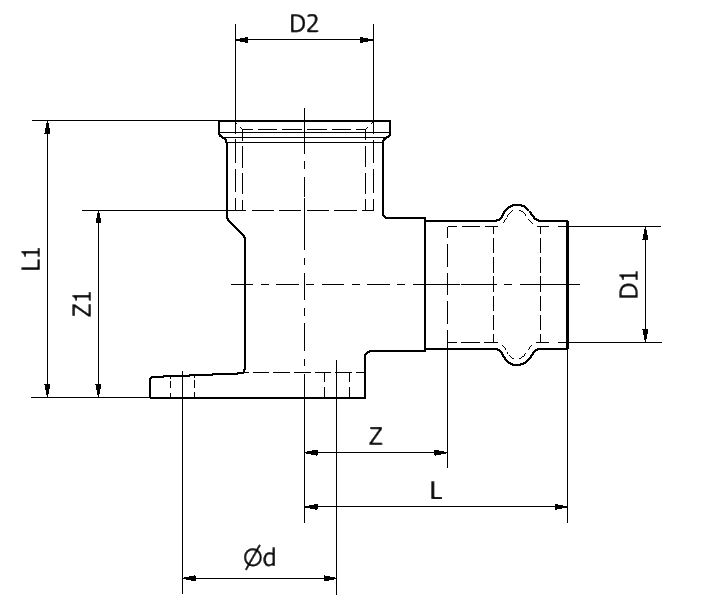

Dimensions (mm)
L
45
L1
36.5
Z
21
Z1
21.5
ød
40
Installation
＞B＜ Press Training Scheme
＞B＜ Press Installation Video
