Wallplate Elbow (2 Hole) 15 x 3/8″

Wallplate Elbow - 2 Hole in the Delcop End Feed range from Conex Bänninger

Product Code

4472G015003000

Size

15 x 3/8"

Application

Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables

Installation Type

Brazing

Enquire Find a stockist

Specification Downloads

Specification

Discover Features

Overview

Product Code

4472G015003000

Size

15 x 3/8"

Application

Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables

Bag Quantity

10

Operating Temperature Range

-20°C to 110°C

Maximum Operating Pressure (Bar)

79 Bar

Maximum Operating Pressure (kPa)

7900 kPa

Maximum Operating Pressure (PSI)

1145 PSI

Materials

Fitting Material

Red Brass

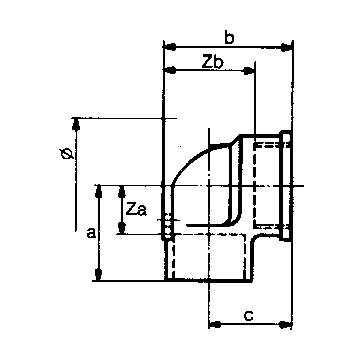

Dimensions (mm)

ZA

10

ZB

19

a

20

b

29

c

19
