45° Obtuse Elbow 1 5/8″

45° Obtuse Elbow in the >B< MaxiPro range from Conex Bänninger

Product Code

MPA5041 0130001

Size

1 5/8"

Application

ACR

Installation Type

Press

Enquire Find a stockist

Specification Installation Downloads

Specification

Discover Features

Overview

Product Code

MPA5041 0130001

Size

1 5/8"

Application

ACR

Bag Quantity

2

Maximum Operating Pressure (Bar)

48 Bar

Maximum Operating Pressure (kPa)

4800 kPa

Maximum Operating Pressure (PSI)

700 PSI

Materials

Fitting Material

Copper

O-Ring/Seal Material

HNBR

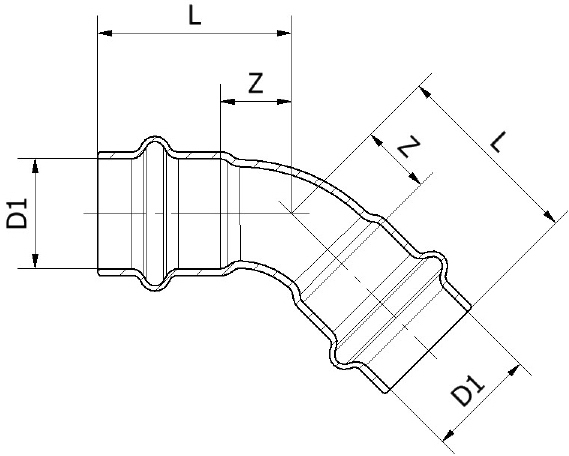

Dimensions (mm)

L

62

Z

31

Discover Features

Installation

＞B＜ MaxiPro Training Highlights at Dudley College

＞B＜ MaxiPro Evacuation

＞B＜ MaxiPro Refrigerant Charging

＞B＜ MaxiPro Strength Test

Downloads

>B< Flow Range Sheet

(

pdf

0.403 MB

)

>B< Bottle Opener Instructions

(

pdf

0.219 MB

)

>B< MaxiPro Technical Brochure

(

pdf

2.567 MB

)

>B< MaxiPro Flare Data Sheet

(

pdf

0.431 MB

)

>B< MaxiPro Fittings Lubricant Instructions

(

pdf

0.331 MB

)

>B< MaxiPro Tube Compatibility Chart

(

pdf

0.168 MB

)

>B< MaxiPro Tool Compatibility Chart 19kN, 22kN, 24kN, 32kN

(

pdf

0.185 MB

)

>B< MaxiPro Product Guarantee Statement

(

pdf

0.115 MB

)

>B< MaxiPro Installation Instructions

(

pdf

0.909 MB

)

>B< MaxiPro Refrigerants Table

(

pdf

0.131 MB

)

>B< MaxiPro Sales Flyer

(

pdf

0.742 MB

)
