45° Obtuse Elbow 22mm
45° Obtuse Elbow in the <A> Press Inox 304 range from Conex Bänninger
Product Code
PSND041 0220000
Size
22mm
Application
Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PSND041 0220000
Size
22mm
Application
Heating Systems
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

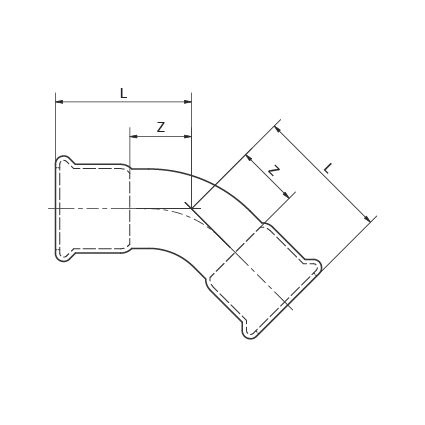

Dimensions (mm)
L
42
Z
21
Installation
＜A＞ Press Inox Installation Sequence
Find the right system for the job
Need help finding the right system for the job?
Enquire
‹A› Press Inox 304
45° Obtuse Elbow 22mm
