90° Bend 14mm
90° Bend in the >B< Press Gas range from Conex Bänninger
Product Code
PG5002 0140000
Size
14mm
Application
Gas, Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PG5002 0140000
Size
14mm
Application
Gas, Heating Systems
Bag Quantity
10
Operating Temperature Range
-20°C to 70°C
Maximum Operating Pressure (Bar)
5 Bar
Maximum Operating Pressure (kPa)
500 kPa
Maximum Operating Pressure (PSI)
72 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
HNBR

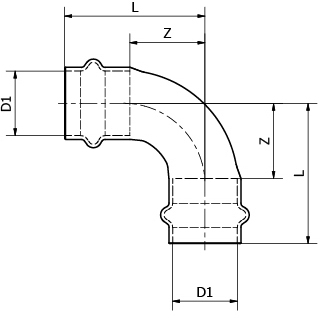

Dimensions (mm)
L
37.5
Z
15.5
Installation
＞B＜ Press Gas: Installation Sequence
