Compression Ring 12mm
Compression Ring in the Conex Compression range from Conex Bänninger
Product Code
D--1020065--
Size
12mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Installation Type
Compression
Specification
Overview
Product Code
D--1020065--
Size
12mm
Application
Cooling Systems, Gas, Heating Systems, Hot And Cold Water, Solar And Renewables
Bag Quantity
100
Operating Temperature Range
-20°C to 110°C
Maximum Operating Pressure (Bar)
25 Bar
Maximum Operating Pressure (kPa)
2500 kPa
Maximum Operating Pressure (PSI)
362 PSI
Materials
Fitting Material
Brass

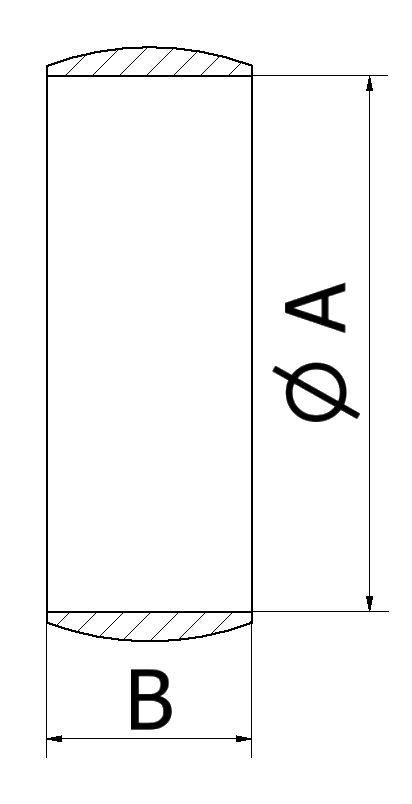

Dimensions (mm)
A
12
B
8
Installation
Conex Compression Installation Sequence
