CxFi 90° Elbow ISO – 7 35 x 1 1/4″
CxFi 90° Elbow ISO - 7 in the <A> Press Inox 304 range from Conex Bänninger
Product Code
PSND090G0351000
Size
35 x 1 1/4"
Application
Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PSND090G0351000
Size
35 x 1 1/4"
Application
Heating Systems
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

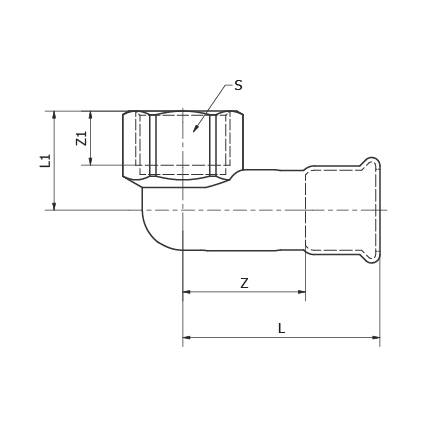

Dimensions (mm)
L
77.5
L1
40
Z
51.5
Z1
21.5
S
48
Installation
＜A＞ Press Inox Installation Sequence
