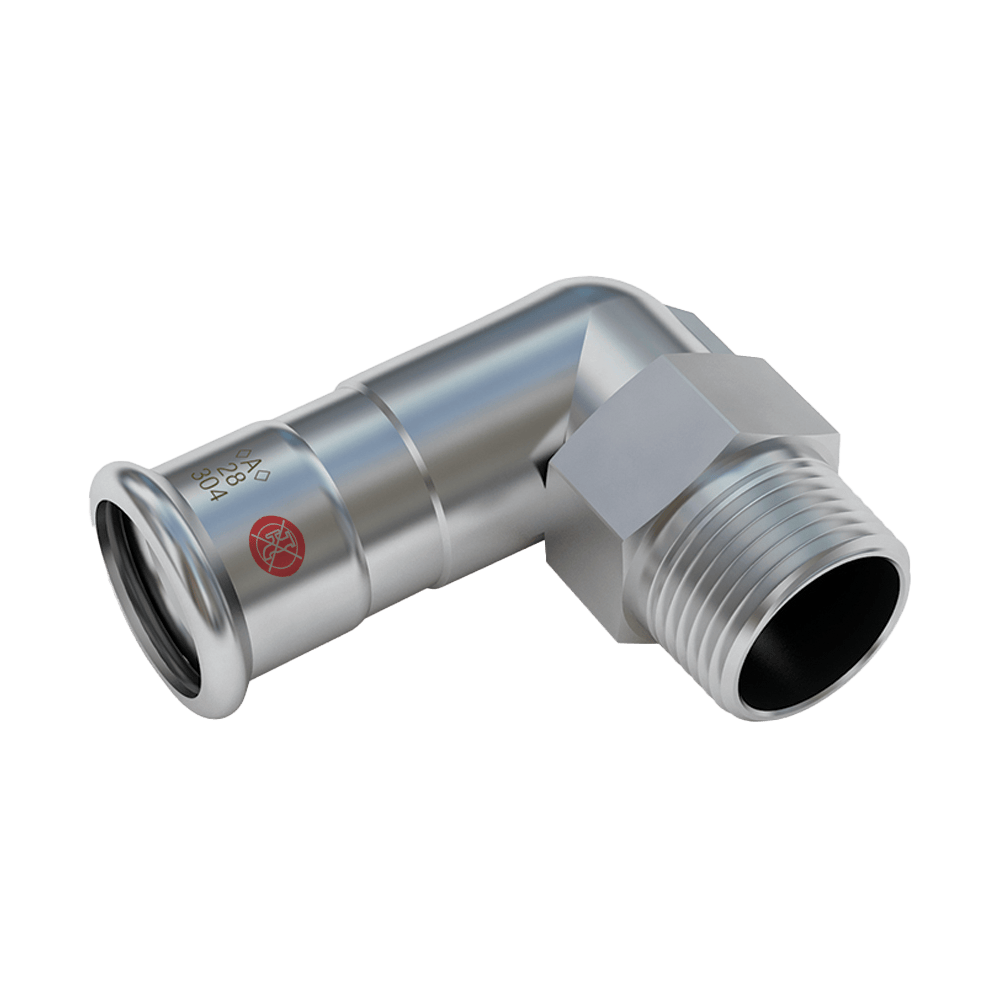

CxMi 90° Elbow ISO -7 18 x 1/2″
CxMi 90° Elbow ISO -7 in the <A> Press Inox 304 range from Conex Bänninger
Product Code
PSND092G0180400
Size
18 x 1/2"
Application
Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PSND092G0180400
Size
18 x 1/2"
Application
Heating Systems
Bag Quantity
10
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

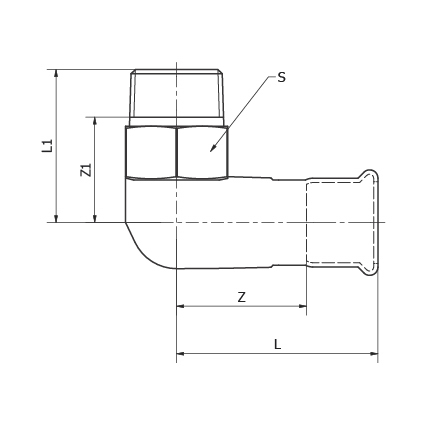

Dimensions (mm)
L
61
L1
37
Z
41
Z1
21
S
24.5
Installation
＜A＞ Press Inox Installation Sequence
