Female Threaded Straight Connector 67 x 2 1/2″
Female Threaded Straight Connector in the >B< Press XL range from Conex Bänninger
Product Code
P5270G06720000
Size
67 x 2 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Press
Specification
Overview
Product Code
P5270G06720000
Size
67 x 2 1/2"
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Coupler
O-Ring/Seal Material
EPDM

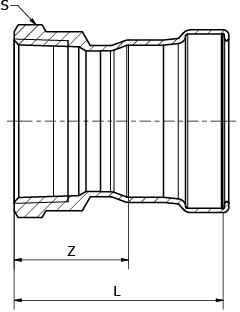

Dimensions (mm)
L
102.5
Z
28.5
S
85
Installation
＞B＜ Press XL: Installation Sequence
