Fitting Reducer 28 x 22mm
Fitting Reducer in the >B< Sonic range from Conex Bänninger
Product Code
S243 028022000
Size
28 x 22mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Installation Type
Push
Specification
Overview
Product Code
S243 028022000
Size
28 x 22mm
Application
Cooling Systems, Heating Systems, Hot And Cold Water
Bag Quantity
1
Operating Temperature Range
-20°C to 95°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Copper
O-Ring/Seal Material
EPDM

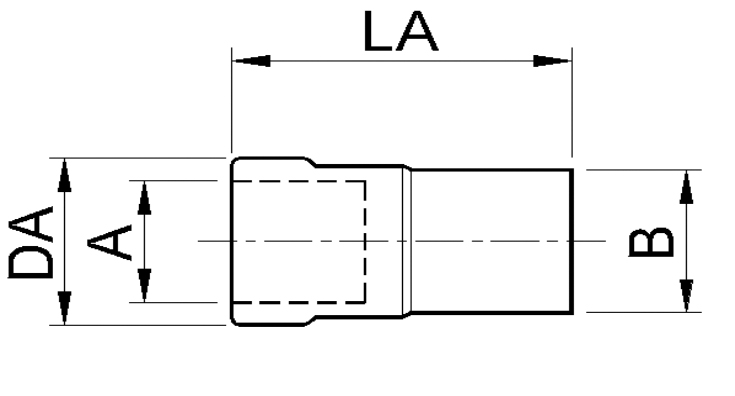

Dimensions (mm)
A
22
B
28
DA
30
DB
57
Installation
＞B＜ Sonic: Installation Sequence
