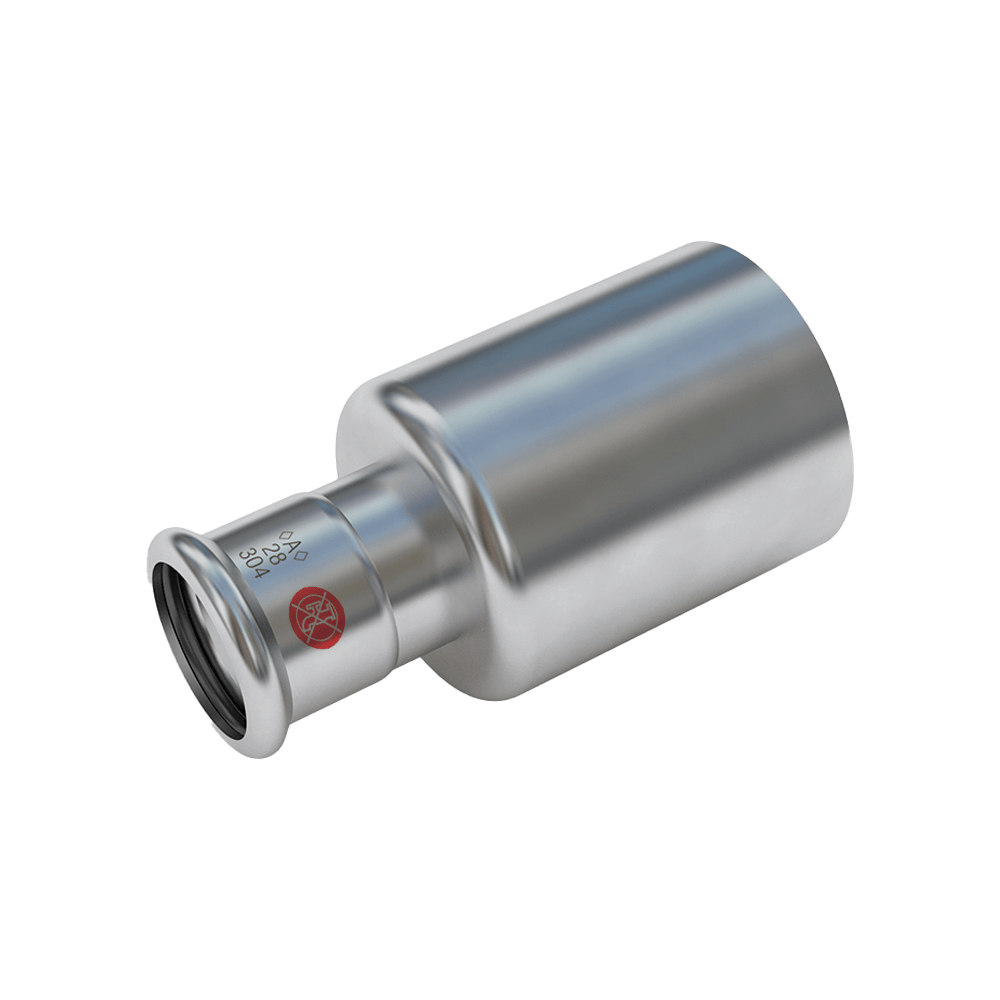

Fitting Reducer 54 x 35mm
Fitting Reducer in the <A> Press Inox 304 range from Conex Bänninger
Product Code
PSND243 0543500
Size
54 x 35mm
Application
Heating Systems
Installation Type
Press
Specification
Overview
Product Code
PSND243 0543500
Size
54 x 35mm
Application
Heating Systems
Bag Quantity
1
Operating Temperature Range
-35°C to 110°C
Maximum Operating Pressure (Bar)
16 Bar
Maximum Operating Pressure (kPa)
1600 kPa
Maximum Operating Pressure (PSI)
232 PSI
Materials
Fitting Material
Stainless Steel
O-Ring/Seal Material
EPDM

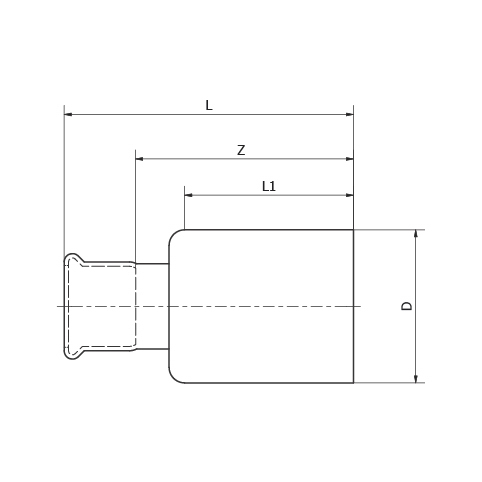

Dimensions (mm)
L
104
L1
59
Z
78
D
54
Installation
＜A＞ Press Inox Installation Sequence
